Raddyant

Rajawali’s signature product, Raddyant, provides various pump product lines ranging from plumbing, HVAC, and fire fighting pumps. Raddyant is also the best centrifugal pump in Indonesia and is certified by NFPA (National Fire Protection Association).

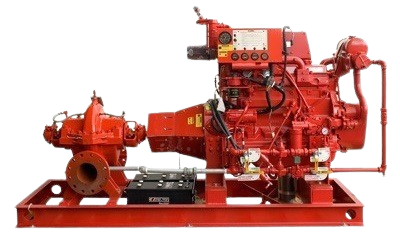

Diesel Pump

Horizontal Split Casing pump (XS)

Performance Range – NFPA20

Capacity : 22-16236 m3/h
Head : 7 – 300m
Temperature : (-20) – 200 C
Speed : 2900 rpm
Motor : Factory Choice, Electrim
Engine : CLARKE, IVECO, FORWARD / FOTON, DOOSAN
Specifications and more please contact us

Material

  • Casing : Cast Iron
  • Impeller : Bronze
  • Shaft : Stainless steel

Contact Us
Diesel Pump Horizontal Split Casing Pump XS

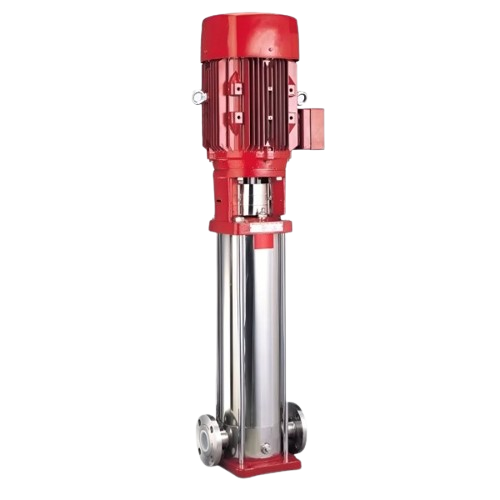

Jockey Pump

Vertical Multistage (VMS)

Performance Range

Capacity :
  • up to 240 m3/h
  • up to 1057 gpm
Head :
  • up to 300 m
  • up to 900 feet
Temperature :
  • up to 120 C
  • up to 230 F
Speed :
  • 2900/3500 rpm
  • 3500/1570 rpm
Power : up tp 150 hp (110 kW)
Material :
  • Casing : Stainless Steel
  • Impeller : Stainless Steel
  • Shaft : Stainless Steel

Contact Us
Vertical Multistage (VMS)

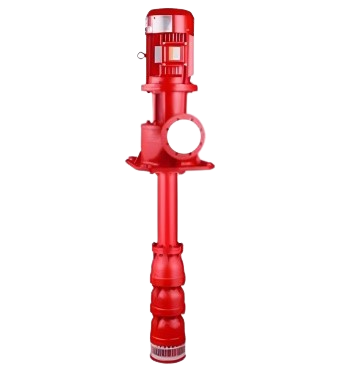

Electric Pump

Vertical Turbine (VT)

Performance Range

Capacity :
  • up to 25.000 m3/h
  • up to 110.000 gpm
Head :
  • up to 380 m
  • up to 1250 feet
Temperature :
  • up to 200 C
  • up to 388 F
Motor : Factory Choice, Electrim

Contact Us
Electric Pump Vertical Turbine

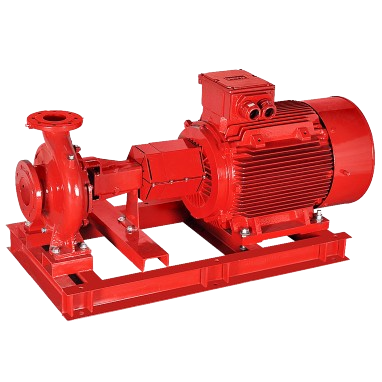

Electric Pump

Centrifugal End Suction (PA)

Performance Range – NFPA20

Capacity :
  • up to 284 m3/h
  • up to 1250 gpm
Head :
  • up to 140 m
  • up to 460 feet
Temperature :
  • up to 105 C
  • up to 200 F
Speed :
  • 2900/1450 rpm
  • 3500/1570 rpm
Material :
  • Casing : Cast Iron
  • Impeller : Bronze
  • Shaft : Stainless Steel
Power : up to 110 kW
Motor : Factory Choice, Electrim

Contact Us
Centrifugal End Suction (PA)

Electric Pump

Horizontal Split Casing pump (XS)

Performance Range – NFPA20

Capacity : 22-16236 m3/h
Head : 7 – 300m
Temperature : (-20) – 200 C
Speed : 2900 rpm
Motor : Factory Choice, Electrim

Material

  • Casing : Cast Iron
  • Impeller : Bronze
  • Shaft : Stainless steel

Contact Us
Electric Pump Horizontal Split Casing Pump XS

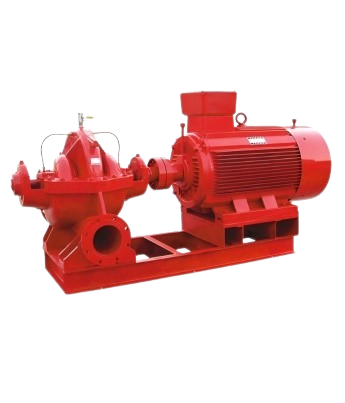

Electric Pump

Horizontal Split Case (TS)

Performance Range – NFPA20

Capacity :
  • up to 1135.6 m3/h
  • up to 5000 gpm
Head :
  • up to 200 m (351 PSI)
Temperature :
  • up to 105 C (200 F)
Speed :
  • 2900 rpm

Material

  • Casing : Cast Iron
  • Impeller : Bronze
  • Shaft : Stainless Steel

Contact Us
Electric Pump Horizontal Split Case (TS)

Diesel Pump

Horizontal Split Case (TS)

Performance Range – NFPA20

Capacity :
  • up to 1135.6 m3/h
  • up to 5000 gpm
Head :
  • up to 200 m (351 PSI)
Temperature :
  • up to 105 C (200 F)
Speed :
  • 2900 rpm
Engine : CLARKE, IVECO, FORWARD / FOTON, DOOSAN
Specifications and more please contact us
Motor : Factory Choice, Electrim

Material

  • Casing : Cast Iron
  • Impeller : Bronze
  • Shaft : Stainless Steel

Contact Us
Diesel Pump Horizontal Split Case (TS)

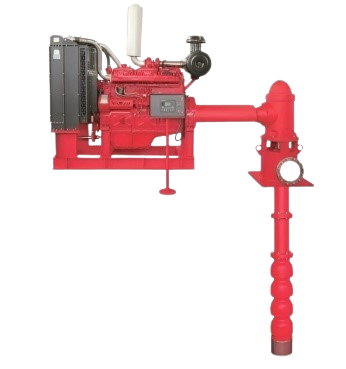

Diesel Pump

Vertical Turbine (VT)

Performance Range – NFPA20

Capacity :
  • up to 25.000 m3/h
  • up to 110.000 gpm
Head :
  • up to 380 m
  • up to 1250 feet
Temperature :
  • up to 200 C
  • up to 388 F
Motor : Factory Choice, Electrim
Engine : CLARKE, IVECO, FORWARD / FOTON, DOOSAN
Specifications and more please contact us

Contact Us
Diesel Pump Vertical Turbine

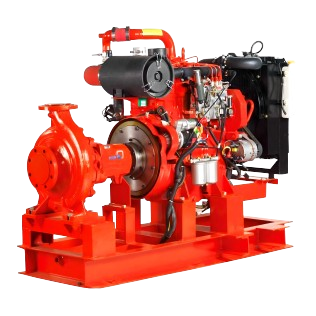

Diesel Pump

Centrifugal End Suction (PA)

Performance Range – NFPA20

Capacity :
  • up to 284 m3/h
  • up to 1250 gpm
Head :
  • up to 140 m
  • up to 460 feet
Temperature :
  • up to 105 C
  • up to 200 F
Speed :
  • 2900/1450 rpm
  • 3500/1570 rpm
Material :
  • Casing : Cast Iron
  • Impeller : Bronze
  • Shaft : Stainless Steel
Power : up to 110 kW
Motor : Factory Choice, Electrim
Engine : CLARKE, IVECO, FORWARD/FOTON, DOOSAN

Contact Us
Diesel Pump Centrifugal End Suction (PA)
